DGKYD311Q070DC2A4DN 25.4mm Network Interface Connector Single Port Gigabit Filter Integrated Transformer 10PIN

Name: DGKYD311Q070DC2A4DN 254mm Network Interface Connector Single Port Gigabit Filter Integrated Transformer 10PIN
Brand: DGKYD
Price: 1 USD

Quality DGKYD311Q070DC2A4DN 25.4mm Network Interface Connector Single Port Gigabit Filter Integrated Transformer 10PIN wholesale

Brand Name : DGKYD

Model Number : DGKYD311Q070DC2A4DN

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : 1 piece

Price : Please contact us to get the latest price.

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Delivery Time : 10 days

Packaging Details : Tray in Carton

Application : PCB

Gender : Female

Housing Material : PBT BLACK

Contact Mating Area Plating : GOLD 6u'' / 15u"/ 30u"/ 50u" for optional

Latch : TAB-Up

LED Option : With LED

Number of Ports : 1

Number of Contacts : 8

PCB Mount Angle : SIDE ENTRY

Contact Now

DGKYD311Q070DC2A4DN 25.4mm network interface connector single port gigabit filter integrated transformer 10PIN

Specification

Part Number	DGKYD311Q070DC2A4DN	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	Without Filter	LED Option	With LED
LED Color	L-Green/R-Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printedout Circuit Board
Port Configuration	1X1 Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Performance parameters:

1. Applied to Ethernet, coil ratio: 1CT: 1CT

2. Meet IEEE 802.3 & ANSI X 3.263 standard

3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias

4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard

5. Withstand voltage: 2250VDC 1mA max, 60s

6. Impedance: 100 ohms

7. RJ45 interface meets FCC 68.5 standard

8. DC resistance: 1.5 Ω

DGKYD311Q070DC2A4DN 25.4mm Network Interface Connector Single Port Gigabit Filter Integrated Transformer 10PIN

Product Tags:

Single Port Gigabit Filter Transformer

10PIN Integrated Transformer

DGKYD311Q070DC2A4DN

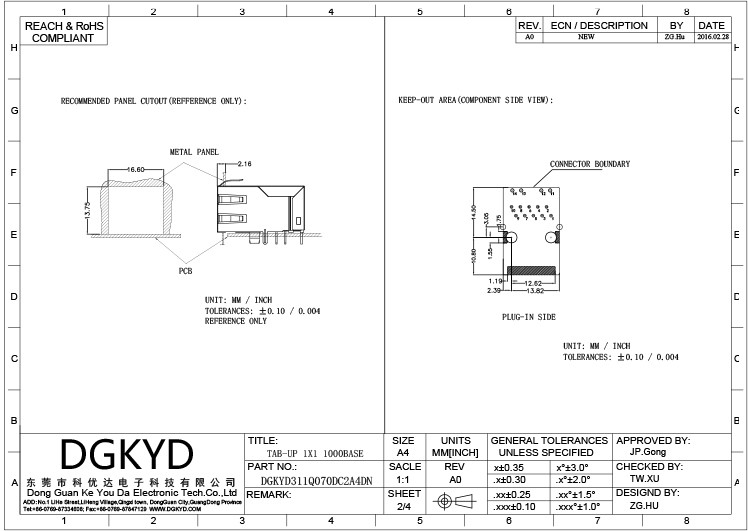

DGKYD311Q070DC2A4DN 25.4mm Network Interface Connector Single Port Gigabit Filter Integrated Transformer 10PIN Images
