KRJ-56S1X1YGNL Metal Shielded Cat5 Rj45 Female Connector

Name: KRJ56S1X1YGNL Metal Shielded Cat5 Rj45 Female Connector
Brand: DGKYD
Price: 1 USD

Quality KRJ-56S1X1YGNL Metal Shielded Cat5 Rj45 Female Connector wholesale

Brand Name : DGKYD

Model Number : KRJ-56S1X1YGNL

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : 1 piece

Price : Please contact us to get the latest price.

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Delivery Time : 10 days

Packaging Details : Tray in Carton

Type : RJ45

Product Name : RJ45 Modular Jack

Gender : rj45 receptacle

Application : fiber optic,ip camera ,dvr,dsl,modem,wifi etc

Feature : cat5

OEM/ODM : yes

Contact Mating Area Plating : GOLD 6u'' / 15u"/ 30u"/ 50u" for optional

PCB Mount Angle : SIDE ENTRY

Operating temperature : - 40 ℃ ~ 85 ℃

Contact Now

China supplier KRJ-56S1X1YGNL metal shielded cat5 rj45 female connector

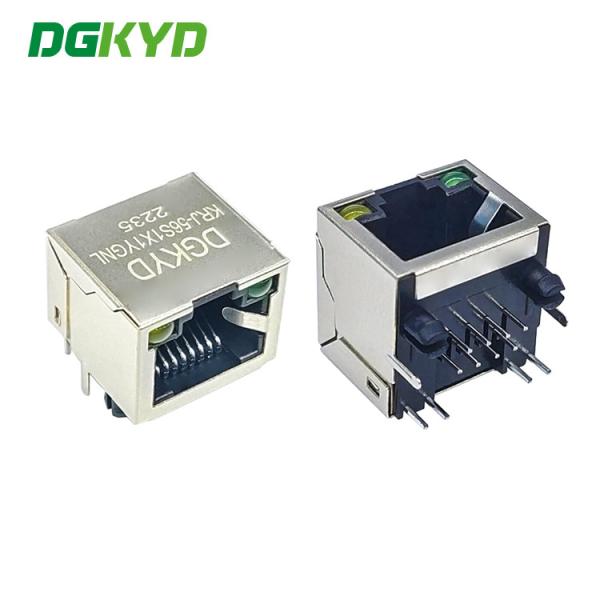

KRJ-56S1X1YGNL Metal Shielded Cat5 Rj45 Female Connector

ATTRIBUTE	ATTRIBUTE VALUE
TEMPERATURE	-40 to +85℃
GROUNDING OPTIONS	Panel Ground and PCB Ground
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	YES
SHIELD	METAL SHIELD
ROHS COMPLIANT	YES
PANEL STOP	YES
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	DIP
CONNECTOR & CONTACT TERMINAATES TO	Printed Circuit Board
NUMBER OF PORTS	1X1
NUMBER OF CONTACTS	8
LED OPTION	NONE
LATCH ORIENTATION	LATCH up
HOUSING MATERIAL	PBT UL94V-0
CONTACT MATING AREA PLATING	GOLD G/FU'' PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

KRJ-56S1X1YGNL Metal Shielded Cat5 Rj45 Female Connector

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
